Bucket Elevators
Vertical transport of dry bulk material
Bucket Elevators
Vertical transport of dry bulk material
HIGHLIGHTS
- Capacities up to 1900 cubic meters per hour.
- Vertical transport of materials such as grain, pellets and powder.
- High degree of durability, safety features and low power consumption in relation to its capacity.
- Highly resistant to wear and is suitable for both indoor and outdoor use.

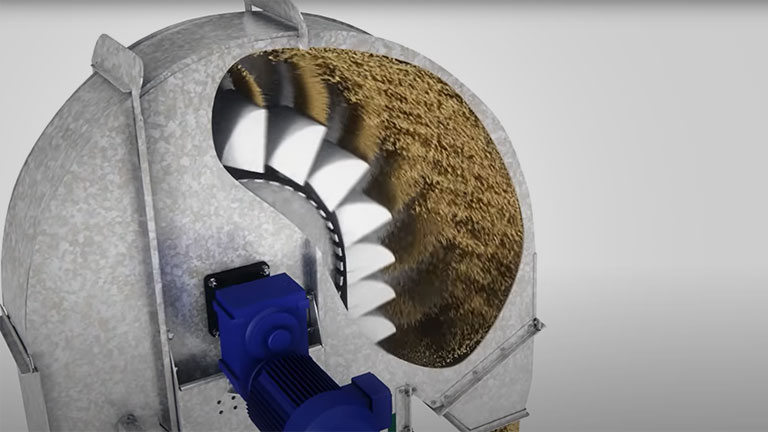

Bucket Elevator Animation
Vertical transport
The Cimbria bucket elevator is ideal for vertical transporting materials such as grain, pellets, and powder. Our Elevators are highly resistant to wear and can be placed both indoors and outdoors. In this video, you can see how it vertically transports dry bulk materials, ideally for a turnkey processing line.
A wide selection of standard accessories can be supplied to meet the demands for industrial use, round-the-clock operation, product characteristics and geographical conditions.
Product Overview
CAPACITIES UP TO 80 M³ PER HOUR
EC Bucket Elevator
Low capacity bucket elevator with flange bearings and galvanized finish.
Trunking with flange/clips assembly.
Data Sheets
- Misalignment Detector XY-81.AT2.49B Data Sheet - English
- Elevator Belt Type EP Data Sheet - English
- Electronic Speed Guard Data Sheet - English
- Elevator Buckets Type EU Data Sheet - English
- Bucket Elevator Support system Data Sheet - English
- Explosion Relief Data Sheet - English
- Misalignment Detector XY-81.AT2.11 Data Sheet - English
CAPACITIES UP TO 225 M³ PER HOUR
ED Bucket Elevator
Medium capacity bucket elevator with flange bearings, galvanized or hot-dip galvanized finish and PEHD wear plates.
Trunking with flange/clips assembly.
Data Sheets
- Misalignment Detector XY-81.AT2.49B Data Sheet - English
- Elevator Belt Type EP Data Sheet - English
- Electronic Speed Guard Data Sheet - English
- Elevator Buckets Type EU Data Sheet - English
- Bucket Elevator Support system Data Sheet - English
- Explosion Relief Data Sheet - English
- Misalignment Detector XY-81.AT2.11 Data Sheet - English
CAPACITIES UP TO 1209 M³ PER HOUR
EH Bucket Elevator
High capacity bucket elevator with reinforced top with pedestal bearings, galvanized or hot-dip galvanized finish and HARDOX wear plates.
Trunking with bolted flange assembly.
Data Sheets
- Misalignment Detector XY-81.AT2.49B Data Sheet - English
- Elevator Belt Type EP Data Sheet - English
- Electronic Speed Guard Data Sheet - English
- Elevator Buckets Type EU Data Sheet - English
- Bucket Elevator Support system Data Sheet - English
- Explosion Relief Data Sheet - English
- Misalignment Detector XY-81.AT2.11 Data Sheet - English
CAPACITIES UP TO 374 M³ PER HOUR
EF Bucket Elevator
Bucket elevator designed for vertical transport of loose bulk materials, such as grain like products, intended for installation in an industrial environment. The elevator has a totally enclosed construction divided into modular sections consisting of a head section, leg section and a boot section.
Data Sheets
- Misalignment Detector XY-81.AT2.49B Data Sheet - English
- Elevator Belt Type EP Data Sheet - English
- Electronic Speed Guard Data Sheet - English
- Elevator Buckets Type EU Data Sheet - English
- Bucket Elevator Support system Data Sheet - English
- Explosion Relief Data Sheet - English
- Misalignment Detector XY-81.AT2.11 Data Sheet - English
CAPACITIES UP TO 706 M³ PER HOUR
EE Bucket Elevator
Reinforced top with pedestal bearings, galvanized or hot dip galvanized execution and HARDOX wear plates.
Trunking with flange assembly.
Data Sheets
- Misalignment Detector XY-81.AT2.49B Data Sheet - English
- Elevator Belt Type EP Data Sheet - English
- Electronic Speed Guard Data Sheet - English
- Elevator Buckets Type EU Data Sheet - English
- Bucket Elevator Support system Data Sheet - English
- Explosion Relief Data Sheet - English
- Misalignment Detector XY-81.AT2.11 Data Sheet - English
Specifications
| Model | Capacity Range | Belt Speed (min/max) | Maximum Bulk Density |
|---|---|---|---|
| EC Bucket Elevator | 25 - 80 m3/h | 1.20 / 2.80 m/s | 850 kg/m3 |
| ED Bucket Elevator | 150 - 225 m3/h | 2.10 / 3.65 m/s | 850 kg/m3 |
| EH Bucket Elevator | 638 - 1209 m3/h | 3.00 / 3.80 m/s | 850 kg/m3 |
| EE Bucket Elevator | 570 - 706 m3/h | 3.00 / 3.80 m/s | 850 kg/m3 |
| EF Bucket Elevator | 85 - 374 m3/h | 2.10 / 3.65 m/s | 850 kg/m3 |
