Belt Conveyor

Gentle Horizontal Conveying

Belt Conveyor

Belt Conveyor

Gentle Horizontal Conveying

HIGHLIGHTS

  • Capacities up to 4000 cubic meters per hour.
  • Ideal for gentle conveying of granular bulk products such as grain, pellets, powder, etc.
  • Totally self-emptying, while energy consumption and wear are minimal.

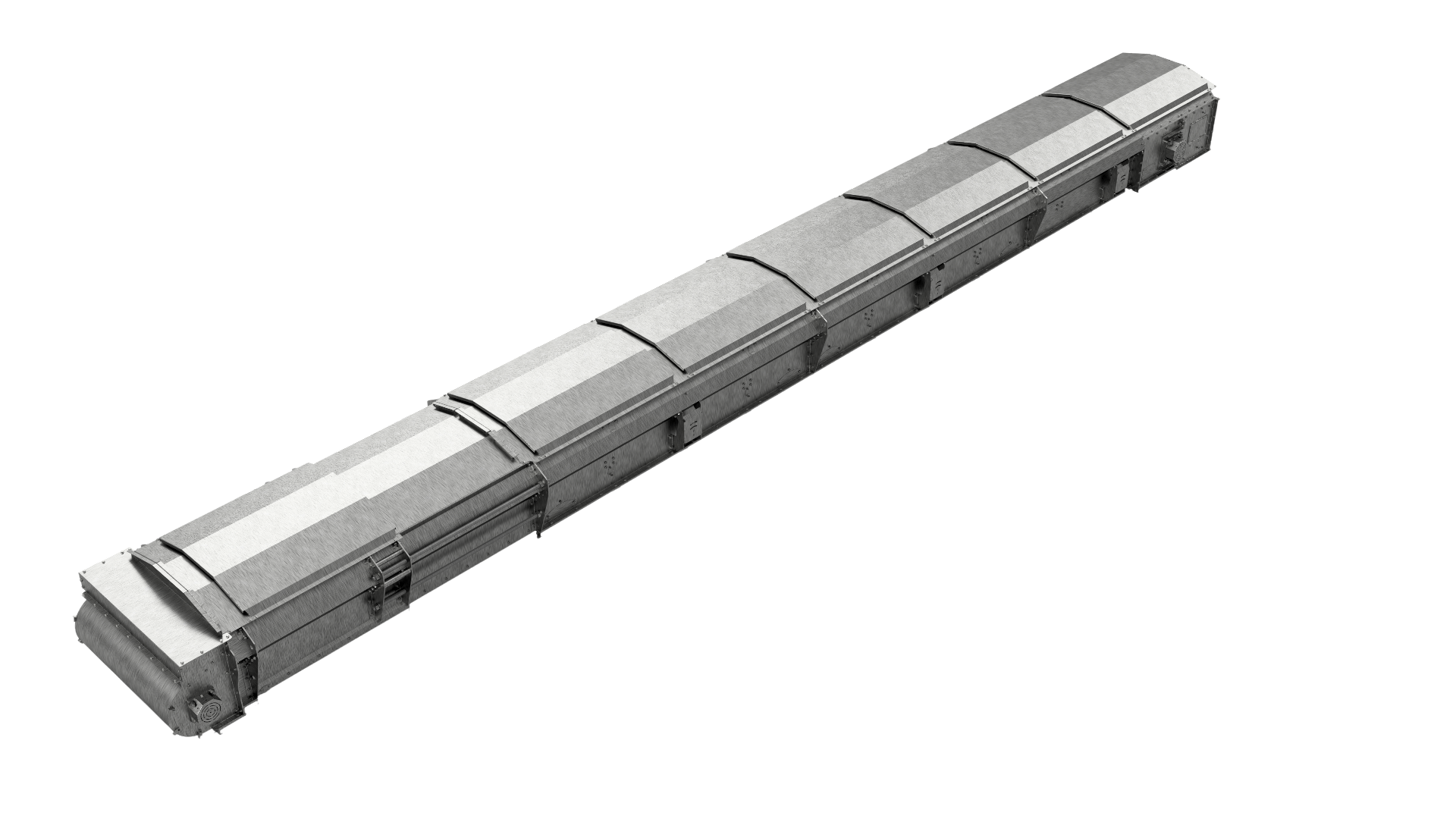

Cimbria Belt Conveyor

Horizontal transport

Ideal for gentle horizontal conveying of bulk materials such as e.g. grain, pellets, and seed. The belt conveyor is self-emptying, and the energy consumption and wear are minimal. Various models and sizes are available depending on the materials being conveyed and the required capacity.

Cimbria's Belt Conveyors are manufactured in a modular system and can be delivered in the exact required length and with optional equipment such as discharge car, top and bottom cover, oil resistant belt, multiple inlet points etc. The belt conveyor is as standard supplied in galvanized execution.

The GT belt conveyor series is fitted with a rubber conveyor belt made up of two layers. It is suitable for the conveying of dry flowing material.

A wide selection of standard accessories can be supplied to meet the demands for industrial use, as well as round the clock operation, product characteristics and geographical conditions.

Product Overview

GF Belt Conveyor Series

CAPACITIES UP TO 216 M³ PER HOUR

GF Belt Conveyor Series

The GF series is a partially enclosed construction designed for horizontal or inclined conveying of bulk material.

The flat profile is particularly suitable for light conveying of loose lump materials such as ear corn.

Flat profile conveying section.

Self-supporting up to 6 m.

CAPACITIES UP TO 262 M³ PER HOUR

GT Belt Conveyor Series

The GT series is suitable for the conveying of dry bulk materials.

It has a partially or fully enclosed construction and a galvanized finish with fish plate assembly.

V-profile conveying section.

Self-supporting up to 6 m.

CAPACITIES UP TO 4000 M³ PER HOUR

GI Belt Conveyor Series

High capacity conveyor in a heavy-duty construction. It has a galvanized finish with fish plate assembly.

V-profile conveying section.

Self-supporting up to 6 meters.

For capacities up to 4000 m³/h in a heavy-duty construction.

CAPACITIES UP TO 4000 M³ PER HOUR

GH Belt Conveyor Series

Hot-dipped galvanized welded execution with flange assembly.

V-profile conveying section.

Self-supporting up to min. 9 meters.

For capacities up to 4000 m³/h in a heavy-duty construction.

Specifications

Model Capacity Range Self Supporting Length Maximum Bulk Density
GF Belt Conveyor 72 - 216 m3/h up to 6 m 850 kg/m3
GT Belt Conveyor 100 - 262 m3/h up to 6 m 850 kg/m3
GI Belt Conveyor 504 - 2197 m3/h up to 6 m 850 kg/m3
GH Belt Conveyor 504 - 4034 m3/h up to 9 m 850 kg/m3
