Chain Conveyor
Simplicity and Safety
Chain Conveyor
Simplicity and Safety
HIGHLIGHTS
- Capacities up to 2800 cubic meters per hour.
- Ideal for horizontal and inclined conveying of granular bulk products such as grain, pellets, powder, etc.
- Completely closed dustproof transport.
- The product line covers chain, angle and trapezoid conveyors.
Cimbria Chain Conveyor
Horizontal and inclined transport
Cimbria Chain conveyor for agricultural and industrial dry bulk material. A range of product models is constructed to suit various materials and tasks.

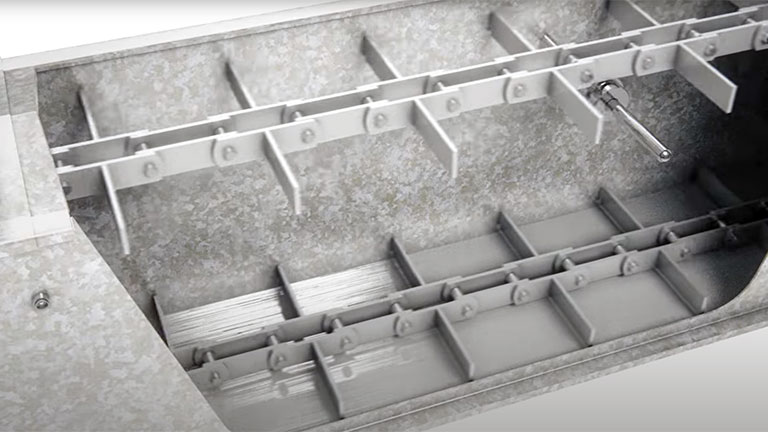

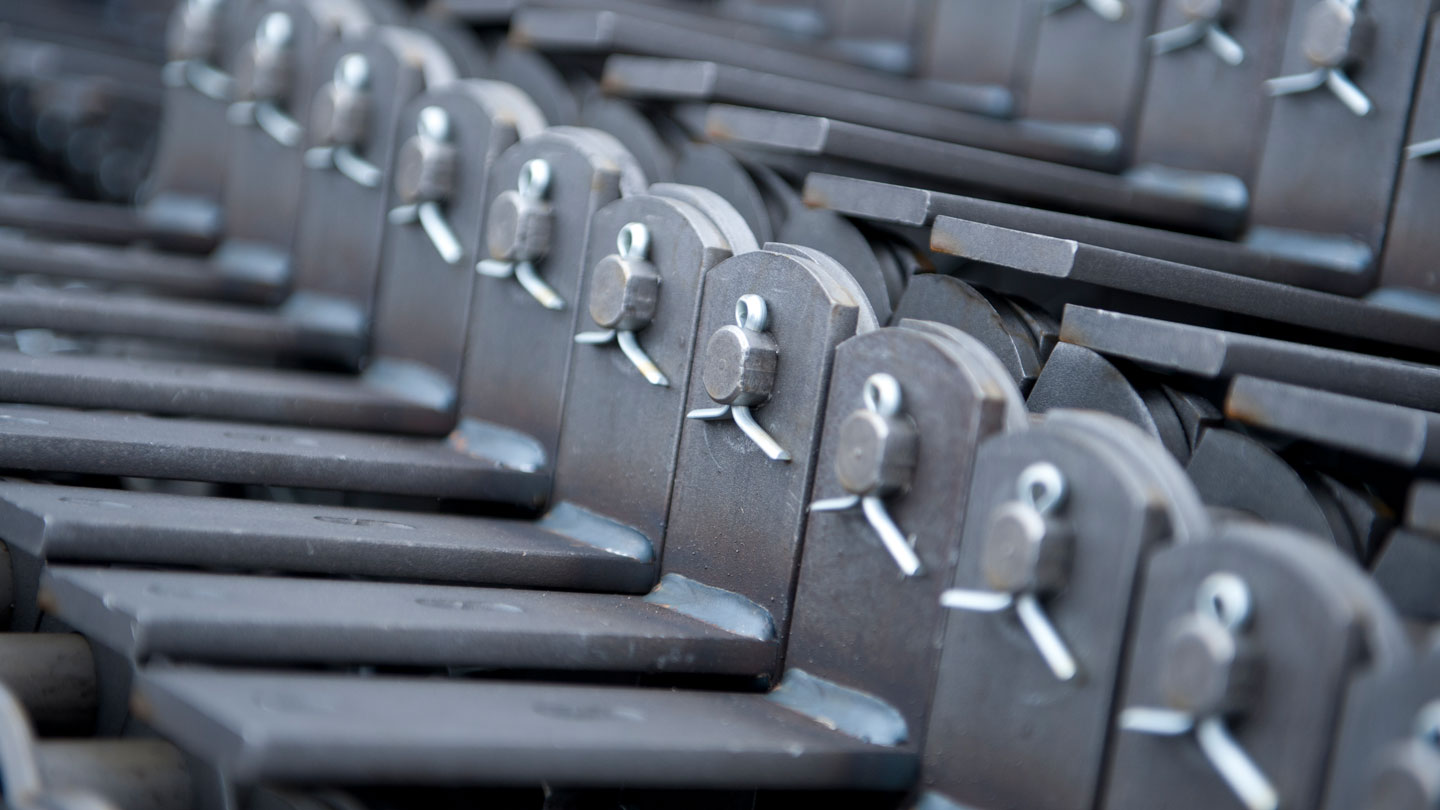

The main feature is the chain which is manufactured in special steel with welded flights, and fitted with hardened steel bushes. A number of flights are complete with plastic flaps, which clean the bottom of the conveyor box. The chain can be supplied with return buckets for the return transport of material in the conveyor.
A wide selection of standard accessories can be supplied to meet the demands for industrial use, as well as round the clock operation, product characteristics and geographical conditions.
Product Overview
CAPACITIES UP TO 212 M³ PER HOUR
Chain Conveyor Type RL
The RL chain conveyor is suitable for a wide range of applications in silo/storage plants and processing industries.
Galvanized finish with fish plate assembly.
CAPACITIES UP TO 1306 M³ PER HOUR
Chain Conveyor Type RM
The RM chain conveyor is suitable for a wide range of applications in silo/storage plants and processing industries.
Galvanized finish with fish plate assembly.
CAPACITIES UP TO 212 M³ PER HOUR
Chain Conveyor Type RS
The RS chain conveyor has a specially designed trapezoidal-shaped bottom and flights that ensure optimal emptying. This makes the conveyor suitable for a wide range of applications, particularly in processing industries.
Allows up to 15° inclination without capacity decrease.
Galvanized finish with flange assembly.
CAPACITIES UP TO 303 M³ PER HOUR
Chain Conveyor Type RA
The RA chain conveyor is an angle conveyor designed with the principle of the chain conveyor in mind.
It is well-suited to bulk intakes and/or to avoid the use of an elevator. With modular bend sections for ascending conveying.
Galvanized finish with fish plate or flange assembly.
CAPACITIES UP TO 0.27 M³ PER HOUR
Chain Conveyor Type RW
The RW chain conveyor is designed to transport dry bulk materials such as sawdust, shavings, and cereal residue.
This chain conveyor is capable of moving dry bulk in both horizontal and inclined directions within a single process, which makes it a cost-effective and efficient solution, as one conveyor can accomplish what generally requires two.
Additionally, the conveyor can be configured for reversible operation, which allows for greater flexibility.
Specifications
| Model | Capacity Range | Chain Speed | Maximum Bulk Density |
|---|---|---|---|
| RL Chain Conveyor | 72 - 212 m3/h | up to .60 m/s | 850 kg/m3 |
| RM Chain Conveyor | 334 - 1306 m3/h | up to .60 m/s |
850 kg/m3 |
| RS Chain Conveyor | 72 - 212 m3/h | up to .60 m/s |
850 kg/m3 |
| RA Chain Conveyor | 103 - 303 m3/h | up to .55 m/s | 850 kg/m3 |
