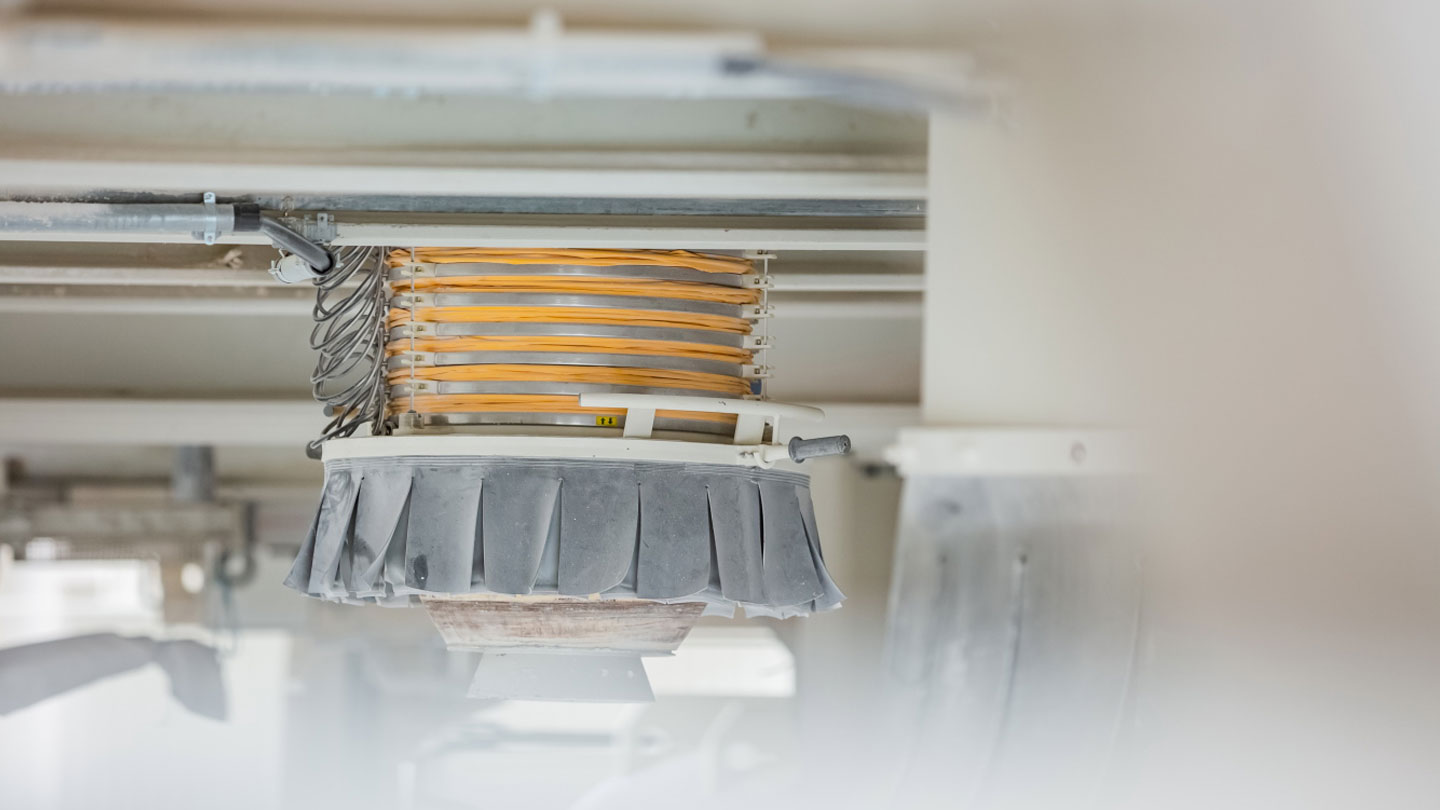

Loading Chutes

Safe and Clean in a Single Product

Capacities up to 3500 cubic meters per hour
Loading Chutes

Loading Chutes

Safe and Clean in a Single Product

Capacities up to 3500 cubic meters per hour

HIGHLIGHTS

  • Designed for dust-free out-loading of dry bulk material.
  • For tanker trucks, flatbed trucks, open and closed rail wagons, and containers.
  • Engineered for heavy-duty performance, long-term durability and high capacity.
  • Available models for virtually any dry bulk product, including agricultural, industrial commodities and raw materials.

Product Overview

CAPACITIES UP TO APPROX. 250 M³ PER HOUR

Moduflex C-Series

Basic model for loading grain, sugar, flour and similar products with moderate dust and wear characteristics.

CAPACITIES UP TO APPROX. 250 M³ PER HOUR

Moduflex F-Series

Loading chute with built-in filter module. Applications where connection to a central exhaust system is not possible or where there is a demand for the product to be returned into the product flow.

For loading of products such as grain, sugar, flour or similar products with moderate wear and dust characteristics.

CAPACITIES UP TO APPROX. 250 M³ PER HOUR

Moduflex D-Series

Loading chute with built-in filter module. Applications where connection to a central exhaust system is not possible or appropriate. For loading products such as cement, fly ash and similar wearing and dusty products.

CAPACITIES UP TO APPROX. 440 M³ PER HOUR

Moduflex HDF-Series

Loading chute with built-in filter module in the 400 series.

Applications where connection to a central exhaust system is not possible or appropriate.

For loading products such as cement, fly ash and similar wearing and dusty products.

CAPACITIES FROM 250 - 700 M³ PER HOUR

Moduflex K-Series

Loading chute with side-mounted filter module. Applications where connection to a central exhaust system is not possible or appropriate.

For loading of products such as grain, sugar, flour or similar products with moderate wear and dust characteristics.

CAPACITIES FROM 250 - 700 M³ PER HOUR

Moduflex N-Series

Loading chute with side-mounted filter module.

Applications where connection to a central exhaust system is not possible or appropriate.

For loading products such as cement, fly ash and similar wearing and dusty products.

CAPACITIES UP TO APPROX. 150 M³ PER HOUR

Moduflex T250-Series

For loading foodstuffs and chemical products such as powder, plastic, granules.

CAPACITIES FROM 440 - 1800 M³ PER HOUR

Moduflex A-Series

The A-series is designed for loading a vast variety of dry bulk products, and where an extended length – which exceeds the capabilities of the smaller chutes in the range – is required, e.g. when stockpiling in warehouses or other open loading applications.

CAPACITIES FROM 250 - 3500 M³ PER HOUR

Moduflex V-Series

The loading chute V-series is designed for loading of any dry bulk materials into open and closed ships and barges, as well as for stockpiling outside and inside warehouses. The sturdy construction, including various safety functions, can accommodate an extended length up to approx. 27 m.

CAPACITIES FROM 250 - 1200 M³ PER HOUR

Moduflex V-Series with Integrated Filter

The V-series with integrated filter at the outlet is a series of loading chutes for loading of any dry bulk materials into open and closed ships and barges, as well as stockpiling outside and inside warehouses where connection to a central aspiration system is not possible or where there is a demand for the product to be returned into the product flow. The sturdy construction, including various safety functions, can accommodate an extended length up to approx. 27 m.

FlexPositioner

Motorised positioning system for dust-free loading chute installations. Neatly engineered and compact in size.

The unit enables the outlet to be precisely positioned in any horizontal direction up to a maximum of 1000 mm from the centre point of the loading chute. The Flexpositioner can also be supplied with a beam that can be rotated through 90° to the left and to the right, thus giving 360° rotation.
