Naked Power.
Pure Performance.

Unlocking a new level of sorting intelligence.
Full-spectrum vision, from UV to IR, BRAIN AI power and streamlined design come together to deliver exceptional results.

Downloads: Data Sheet | Brochure

This is SEA.XE

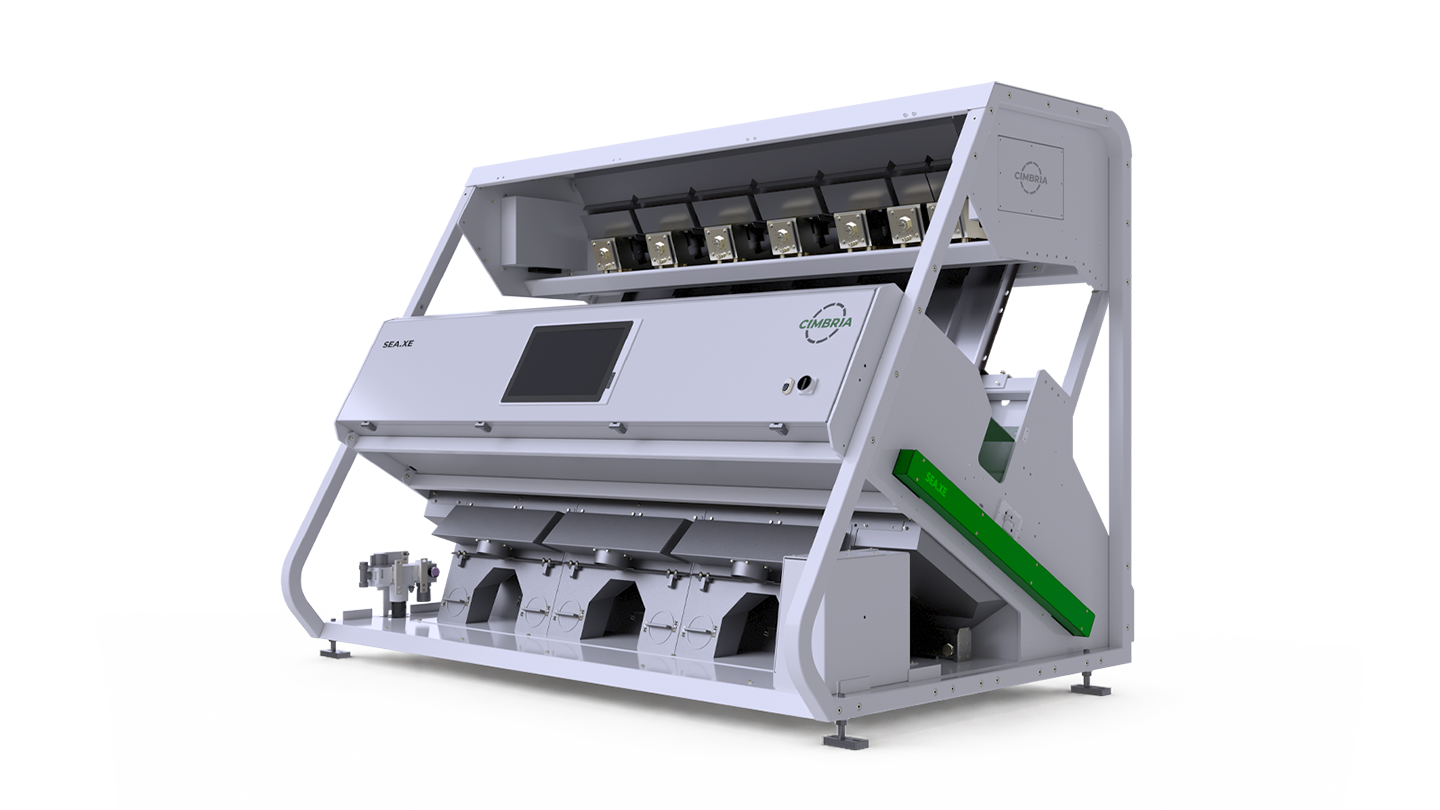

The SEA.XE optical sorter seen from three quarters, with the top hood open

Extreme performance. Finally within reach.

Maximum purity	Defects and foreign bodies invisible to the human eye are detected and removed.
Optimised yield	Maximum good product, minimum waste, more value per ton.
Food safety	Guaranteed compliance with the strictest standards, batch after batch.
Accessible to all	Fast setup and intuitive control: top-tier performance without specialist skills.

Beyond human eye.

The Vision System

Every grain is photographed in flight, front and back, in the visible and the infrared spectrum. What the eye cannot tell apart, the SEA.XE separates.

16 M

colours recognised, plus infrared

30,000 Hz

scanning speed

14

defect families handled

RGB Full-Color with integrated NIR

Standard, front and back, 2048 pixels. Colour and infrared in the same camera: no compromise between the two.

SWIR InGaAs cameras

SWIR cameras identify materials by chemical composition, detecting foreign bodies that look identical in colour.

UV Fluorescence Detection

UV cameras reveal what the eye cannot see, detecting fluorescent defects for even higher purity.

Ejection

One blast, one grain.

The ejectors work at a 5 mm pitch, 63 per channel. Each blast hits only the strip that holds the reject, with timing and duration set on the product.

Seeds in free fall at the point where the machine decides what to keep and what to reject

5 mm

pitch between one valve and the next

63

ejectors per channel

1,000/s

cycles per second

2 bn

cycles of guaranteed service life

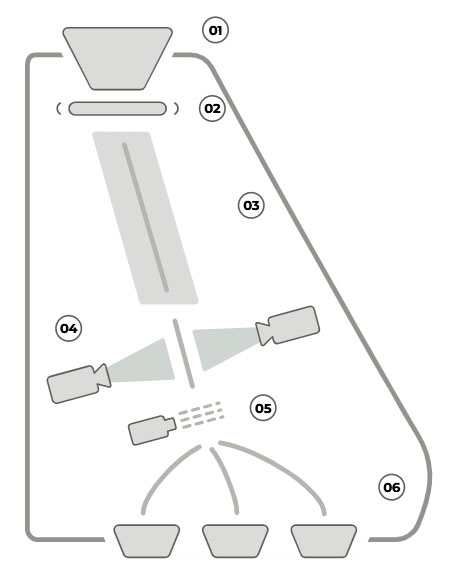

Inside SEA.XE

01 – Loading	The product enters through the hopper. Level sensors keep the flow constant.
02 – Distribution	The vibrating plate spreads the product into a thin, even layer. One grain next to another, not stacked on top of each other.
03 – Drop	Every 320 mm, a chute accompanies the product, guiding its fall in a straight, controlled trajectory.
04 – Vision	As the grain flies, cameras angled to converge on the same point capture a consistent image on every pass.
05 – Decision and ejection	The software analyzes images and makes decisions in real time. The ejectors blow only on the elements to be removed.
06 – Output	Three separate outlets: accepted product, rejects, and rebounds. Nothing gets mixed.

Change the throughput, not the precision.

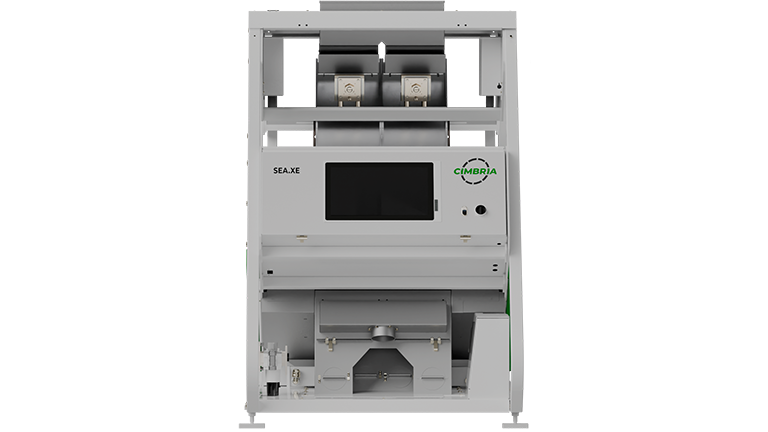

Front view of the SEA.XE in the 2 channel configuration

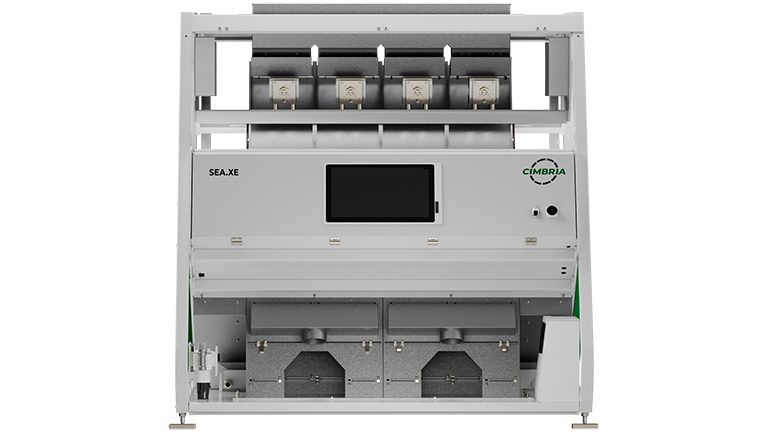

Front view of the SEA.XE in the 4 channel configuration

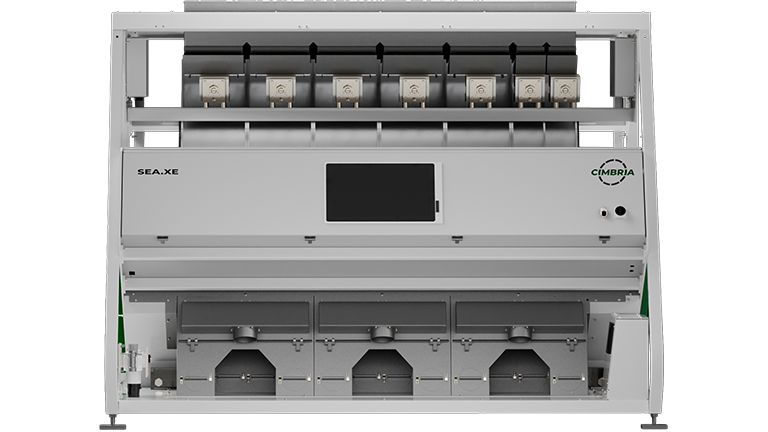

Front view of the SEA.XE in the 6 channel configuration

	2 channels	4 channels	6 channels
Chute width	640 mm	1280 mm	1920 mm
Ejectors per channel	126	252	378
Compressed air (max 6 bar)	640 I/min	1280 I/min	1920 I/min
Machine width	1360 mm	2040 mm	2720 mm
Extraction	1000 m³/h	2000 m³/h	3000 m³/h

Depth 1950 mm and height 2270 mm stay the same across every configuration.

Up to 4 sections for simultaneous re-sorts. Configurations with re-sort, double re-sort and reverse sorting.

50:50 splitting of the last channel, optional.

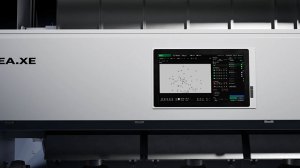

The 21.5 inch touch screen running on the SEA.XE, showing the Recipe Editor

New HMI. Smoothest control ever.

Few simple steps to master all its power.

Discover the new HMI

Put SEA.XE to the test

Cimbria testing lab

Free test in our lab

Send us your toughest sorting challenge. Let our experts help you by achieving the performance in front of you.

customer-care-hero-768

Exclusive 24/7 service

A global network of assistance, 365 days a year, wherever your plant is.

Brochure and tech sheet

Full documentation on SEA.XE, ready to download and share.
