Length Grading of all Granular Materials
Indented Cylinder Separator
Length Grading of all Granular Materials
HIGHLIGHTS
- Used for length grading of all granular materials, such as wheat, oat, maize, rice, fine seeds, lentils, sticks from sunflower or sugar beet, plastic particles, etc., as well as for the extraction of unwanted short or long admixtures.
- Through the inlet housing, the granular material to be graded flows into the interior of the rotating cylinder, whose cover is equipped with special deep-drawn teardrop or spherical-shaped pockets for the most precise length separation.
Indented Cylinder Separator Process

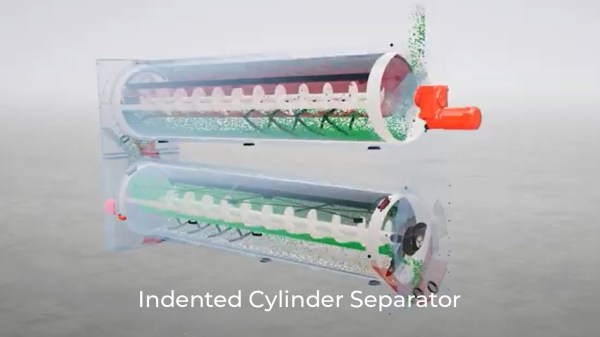

Product passes from the inlet housing into the interior of the rotating cylinder, the cover of which is provided with impressed pockets or so-called indents.
Grains that embed themselves in the indents are carried, and after a certain distance, fall out of the pockets into the trough and are discharged by a screw conveyor.
Grains which are larger than the indents remain inside the shell and are carried to the outlet where the shell empties into the outlet casing. Depending on the required grading, the incoming product is sorted according to roundness or length.
Product Overview
Take your cleaning to new lengths!
Unlock the potential of your granular products
See the principles of how our Indented Cylinder efficiently cleans wheat, oats, maize, rice, fine seeds, lentils, and more, removing unwanted short or long admixtures by length. It is crucial for length grading to ensure only the desired grains are collected. With Cimbria’s unique in-house manufacturing of cylinder segments, we guarantee top-notch quality and customization from the earliest stages of production.
Thinking about financing?
Get an informal talk with our financing department and learn how we can help realize your dream.
