Screw Conveyors

Efficient Conveying of Dry Bulk Materials

HIGHLIGHTS

Capacities up to 475 cubic meters per hour.
Designed for horizontal or inclined conveying.
Standard and heavy-duty trough or tube conveyors are available.
Model CAU can be equipped with shaft-free inner screws to prevent build-up.

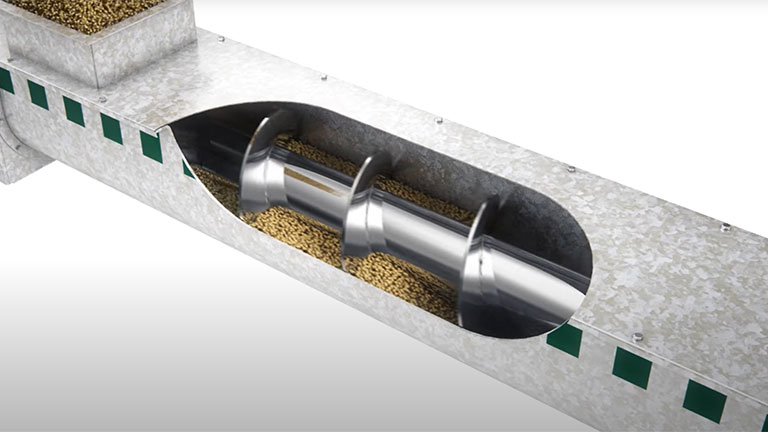

Screw Conveyor Animation

Horizontal or inclined transport

Cimbria Screw Conveyors are designed for horizontal or slightly inclined conveying of free-flowing bulk products such as grains, fertilizers, flour, powder, or granulates.

They are for conveying bulk material with abrasive characteristics or high-duty requirements

Product Overview

CAPACITIES FROM 15 – 475 M³ PER HOUR

CU Trough Conveyor

The CU trough conveyor is designed for horizontal or slightly inclined conveying of free flowing bulk products such as grains, fertilizers, flour, powder or granulates. The screw conveyor is modular in construction with bolted dustproof top cover which enables easy access for inspection and service. The trough conveyor is available in lengths up to 25 meter consisting of trough sections in 2/2,5 meters and flights supported at 4 to 6 metre lengths. Intermediate bearings up to every 6 metres are available in bronze, plastic, beechwood or roller bearings.

Models available in sizes 150-800.

Screw Conveyor Type CU Data Sheet – English (opens in new window)

CAPACITIES FROM 15 – 475 M³ PER HOUR

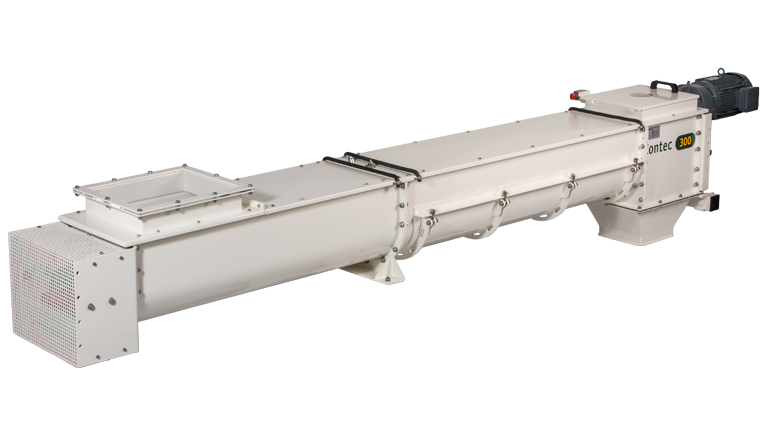

CUH Heavy-Duty Trough Conveyor

The CUH conveyor is designed for conveying bulk material with abrasive characteristics or high duty requirements. It is manufactured using heavier materials such as Hardox plate. To improve bearing protection the conveyor is supplied with adjustable packing boxes and stand off bearings. The screw conveyor is modular in construction and as standard it is available in lengths up to 25 meter consisting of trough sections in 2/2,5 metres lengths and flights in 4-6 metre lengths. Hangar bearings up to every 6 metres are available in bronze, plastic, beechwood or roller bearings.

Models available is sizes 150-800.

Screw Conveyor Type CUH Data Sheet – English (opens in new window)

CAPACITIES FROM 15 – 475 M³ PER HOUR

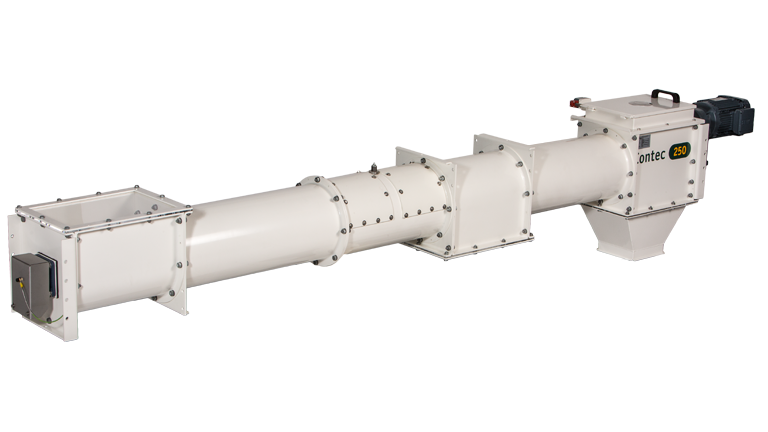

CO Tube Conveyor

The CO tube conveyor is designed for horizontal or inclined conveying of free flowing bulk products such as grains, fertilizer, flour, powders or granulates. The screw conveyor is modular in construction and in standard form the conveyor is available in lengths up to 25 metre consisting of trough sections in 2/2,5 metre lengths and flights in 4-6 metre lengths. Intermediate bearings up to every 6 metres are available in bronze, plastic, beechwood or roller bearings.

Models available is sizes 150-800.

Screw Conveyor Type CO Data Sheet – English (opens in new window)

CAPACITIES FROM 15 – 475 M³ PER HOUR

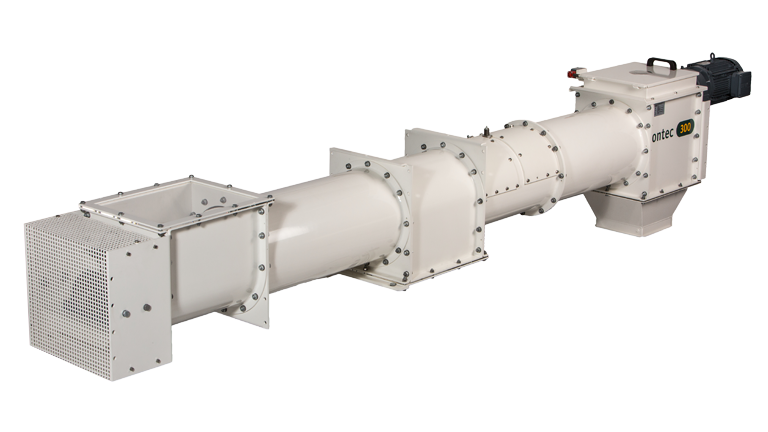

COH Heavy-Duty Tube Conveyor

The tube conveyor is also available in a heavy duty construction with the designation COH. This conveyor type is equipped with stand off bearings as standard.

Models available is sizes 150-800.

Screw Conveyor Type COH Data Sheet – English (opens in new window)

CAPACITIES FROM 2 – 12 M³ PER HOUR

CAU Trough Conveyor

The CAU trough conveyor is equipped with a shaft free flight to prevent product build up in the conveyor.

It is designed to operate horizontally or slightly inclined and used to convey viscous products such as sludges and difficult to handle products. The trough is supplied with a special nylon lining to improve wear and self cleaning characteristics.

The trough is equipped with bolted dustproof top cover which enables easy access for inspection and service. The maximum length is 12 metres.

Models available is sizes 200-400.

Screw Conveyor Type CAU Data Sheet – English (opens in new window)

Specifications

Model	Capacity Range	Size Range
CU Trough Conveyor	15 – 475 m3/h	150 – 800
CUH HD Trough Conveyor	15 – 475 m3/h	150 – 800
CO Tube Conveyor	15 – 475 m3/h	150 – 800
COH HD Tube Conveyor	15 – 475 m3/h	150 – 800
CAU Trough Conveyor	2 – 12 m3/h	200 – 400

Model

Capacity Range

Size Range

CU Trough Conveyor

15 – 475 m3/h

150 – 800

CUH HD Trough Conveyor

15 – 475 m3/h

150 – 800

CO Tube Conveyor

15 – 475 m3/h

150 – 800

COH HD Tube Conveyor

15 – 475 m3/h

150 – 800

CAU Trough Conveyor

2 – 12 m3/h

200 – 400
