Gentle Horizontal Conveying
Belt Conveyors
Gentle Horizontal Conveying
HIGHLIGHTS
- Capacities up to 3720 cubic meters per hour.
- Ideal for gentle conveying of granular bulk products such as grain, pellets, powder, etc.
- Totally self-emptying, while energy consumption and wear are minimal.
Cimbria Belt Conveyor
Horizontal transport
Ideal for gentle horizontal conveying of bulk materials such as e.g. grain, pellets, and seed. The belt conveyor is self-emptying, and the energy consumption and wear are minimal. Various models and sizes are available depending on the materials being conveyed and the required capacity.
Cimbria’s Belt Conveyors are manufactured in a modular system and can be delivered in the exact required length and with optional equipment such as discharge car, top and bottom cover, oil resistant belt, multiple inlet points etc. The belt conveyor is as standard supplied in galvanized execution.
The GT belt conveyor series is fitted with a rubber conveyor belt made up of two layers. It is suitable for the conveying of dry flowing material.
A wide selection of standard accessories can be supplied to meet the demands for industrial use, as well as round the clock operation, product characteristics and geographical conditions.
Product Overview
CAPACITIES OF UP TO 3720 m³ PER HOUR

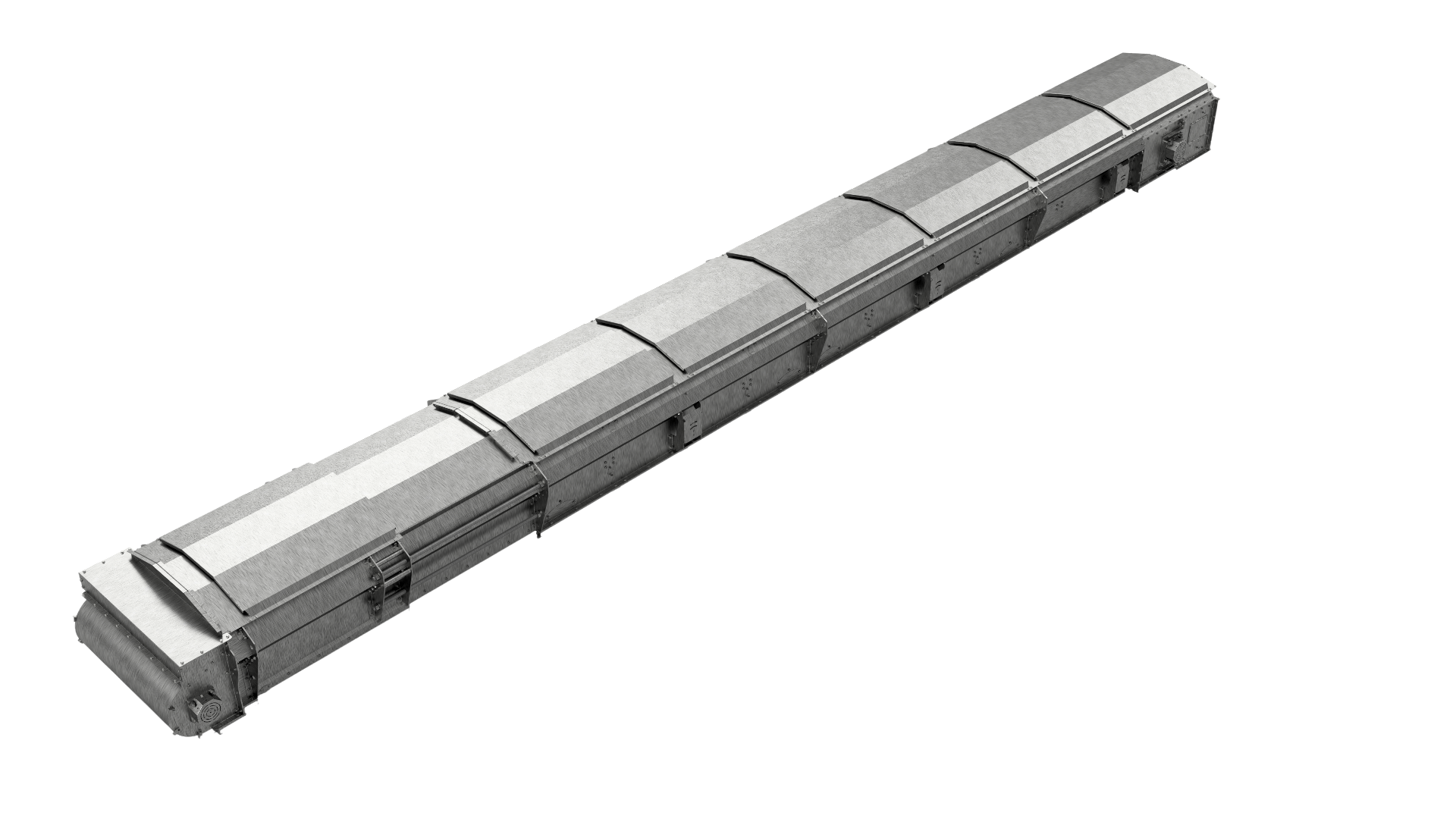

GX Belt Conveyor Series
Standard pre-galvanized or optional stainless hot deep galvanized steel casing.
Modular, fully enclosed design for high combinability and protection against many environmental conditions.
Easy to assemble, reduces installation costs.
Troughed belt conveying and self-cleaning tension sections.
Specifications
| Model | Capacity Range | Self Supporting Length | Maximum Bulk Density |
|---|---|---|---|
| GF Belt Conveyor | 72 – 190 m3/h | up to 6 m | 850 kg/m3 |

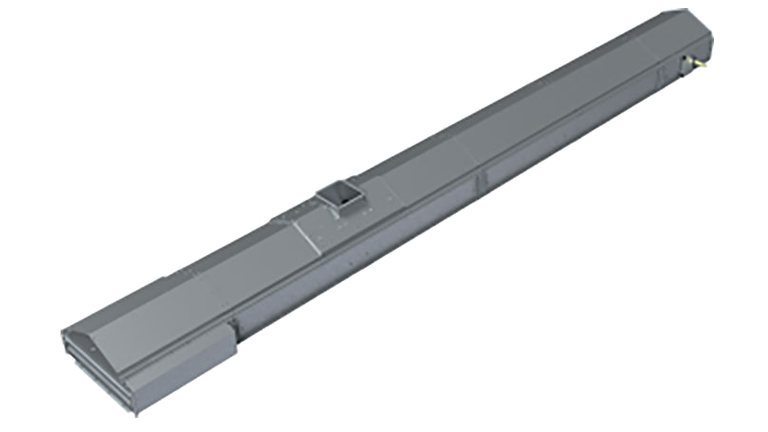

| GT Belt Conveyor | 100 – 276 m3/h | up to 6 m | 850 kg/m3 |
| GI Belt Conveyor | 504 – 2601 m3/h | up to 6 m | 850 kg/m3 |
| GH Belt Conveyor | 504 – 3442 m3/h | up to 9 m | 850 kg/m3 |
